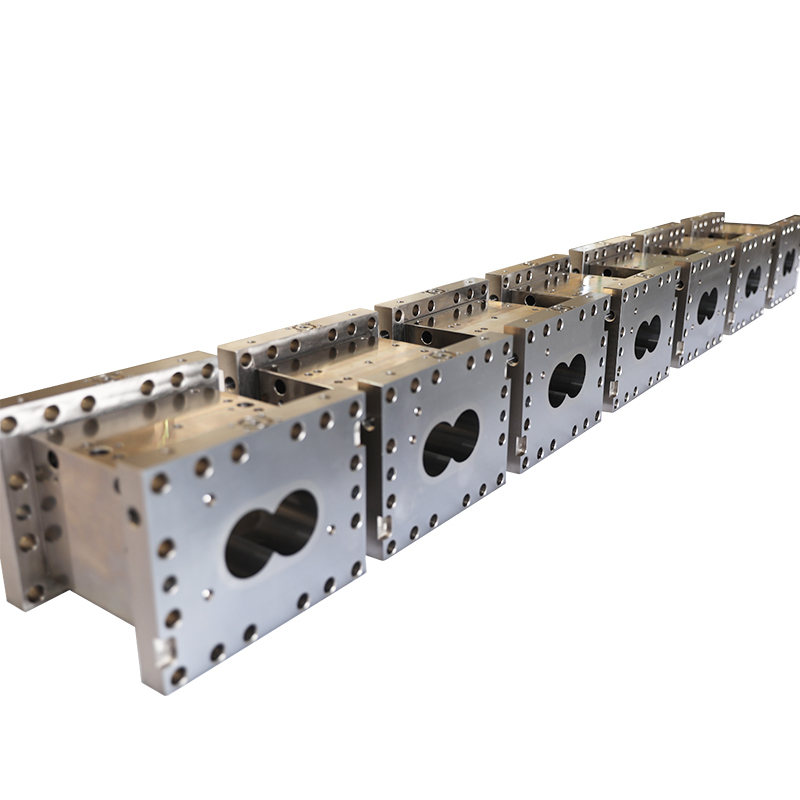

Twin Screw Extruder Barrel 16.5-400mm High Wear-Resistance Cr12MoV

उत्पाद विवरण

उत्पत्ति के प्लेस: जियांगसु, चीन

ब्रांड नाम: ZHITIAN

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा: 1

मूल्य: $300

सर्वोत्तम मूल्य प्राप्त करें

उत्पाद विवरण

उत्पाद वर्णन

प्रमुखता देना:
                                                                                                                                                                                                                                                                                                                                                                                                            Twin screw extruder barrel Cr12MoV, High wear-resistance extruder barrel, 16.5-400mm extruder screw barrel


सामग्री:	EPDM, HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30	वज़न:	50 किलोग्राम
स्पेयर पार्ट्स प्रकार:	बैरल	पेंच डिजाइन:	जुड़वां पेंच
श्रेणी:	16.5 से 400 मिमी	नमूना:	टाइप करें 20/30/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
गुणवत्ता:	उच्च घिसाव-प्रतिरोध और संक्षारण-प्रतिरोध	इस्तेमाल किया गया:	ट्विन स्क्रू एक्सट्रूडर के लिए
बैरल सामग्री:	हेस्टेलॉय-सी मिश्र धातु, 38crmoala, 304/316/316L स्टेनलेस स्टील	प्रत्यक्ष यौगिक बैरल:	ZT610 NI60 आधारित+CU, ZT615 NI60 आधारित, ZT625 NI60 आधारित+टंगस्टन कार्बाइड, हिप कोबाल्ट आधारित+टंगस
पूरा लाइनर बैरल:	38CRMOALA लाइनर, 440C स्टेनलेस स्टील लाइनर, CR12MOV लाइनर, SKD11/SKD61 लाइनर, DC53 लाइनर, W6MO5CR4V2	यौगिक मिश्र धातु लाइनर बैरल:	S45C+ZT610 NI60 आधारित लाइनर+CUS45C+ZT615 NI60 आधारित लाइनर, S45C+ZT625 NI60 आधारित लाइनर+टंगस्टन का
स्क्रू प्रकार:	दो स्क्रू का	डिजाइन सुविधा:	बिल्डिंग ब्लॉक डिज़ाइन
सामग्री विकल्प:	ZT615 निकेल-आधारित मिश्र धातु, ZT625 निकेल-आधारित मिश्र धातु टंगस्टन कार्बाइड

सामग्री:	EPDM, HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30
वज़न:	50 किलोग्राम
स्पेयर पार्ट्स प्रकार:	बैरल
पेंच डिजाइन:	जुड़वां पेंच
श्रेणी:	16.5 से 400 मिमी
नमूना:	टाइप करें 20/30/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
गुणवत्ता:	उच्च घिसाव-प्रतिरोध और संक्षारण-प्रतिरोध
इस्तेमाल किया गया:	ट्विन स्क्रू एक्सट्रूडर के लिए
बैरल सामग्री:	हेस्टेलॉय-सी मिश्र धातु, 38crmoala, 304/316/316L स्टेनलेस स्टील
प्रत्यक्ष यौगिक बैरल:	ZT610 NI60 आधारित+CU, ZT615 NI60 आधारित, ZT625 NI60 आधारित+टंगस्टन कार्बाइड, हिप कोबाल्ट आधारित+टंगस
पूरा लाइनर बैरल:	38CRMOALA लाइनर, 440C स्टेनलेस स्टील लाइनर, CR12MOV लाइनर, SKD11/SKD61 लाइनर, DC53 लाइनर, W6MO5CR4V2
यौगिक मिश्र धातु लाइनर बैरल:	S45C+ZT610 NI60 आधारित लाइनर+CUS45C+ZT615 NI60 आधारित लाइनर, S45C+ZT625 NI60 आधारित लाइनर+टंगस्टन का
स्क्रू प्रकार:	दो स्क्रू का
डिजाइन सुविधा:	बिल्डिंग ब्लॉक डिज़ाइन
सामग्री विकल्प:	ZT615 निकेल-आधारित मिश्र धातु, ZT625 निकेल-आधारित मिश्र धातु टंगस्टन कार्बाइड

Twin Screw Extruder Barrel 16.5-400mm High Wear-Resistance Cr12MoV

Wear-resisting Corrosion-resisting Cost Effective Alloy Screw Barrel

High-performance twin screw extruder barrels designed for durability and efficiency in demanding industrial applications.

Color	Metal
Standard	GB ISO 9001
Model	Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Brand	zhitian
Quality	High wear-resistance and corrosion-resistance
Used	For twin screw extruder

Industry Applications

Our twin-screw extruder barrels are widely used in plastics, rubber, chemicals, food, and new energy industries. Countless extruders worldwide use our high-performance components for efficient and stable operation.

Advanced Building Block Design

Our split twin-screw extruder features an innovative modular design. The screw consists of various blocks installed on the mandrel and barrel lining, forming an adjustable sleeve system. This allows flexible component combinations to meet specific material processing requirements for transportation, refinement, shearing, and discharge.

Reduced Maintenance Costs

The modular design enables partial replacement of worn components, eliminating the need for complete screw or barrel replacement. This significantly reduces maintenance costs and downtime while extending equipment lifespan.

Material Innovation

Zhitian has developed proprietary materials including ZT615 nickel-based alloy and ZT625 nickel-based alloy tungsten carbide, specifically engineered for superior wear and corrosion resistance.

Barrel Types and Materials

Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel

Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide

Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide

Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide

Product Showcase

Why Choose Zhitian Extruder Barrels?

With extensive experience in twin-screw extruder screw barrels, we've developed innovative designs that significantly increase output and enhance service life. We provide OEM services for leading extruder manufacturers worldwide, establishing ourselves as one of China's premier extruder barrel manufacturers.

Our Advantages

Extended service life through superior materials and design
Custom material selection for optimal wear and corrosion resistance
Professional technical team for precise measurement, design, and component configuration
Comprehensive quality management system with full product traceability
Versatile application across multiple material processing requirements

Company Profile

NANJING ZHITIAN specializes in manufacturing replacement parts for twin screw extruders, with over 20 years of experience producing gearboxes, barrels, and screw elements. We also provide refurbishment services for gearboxes and barrels.

Our company combines strong technical expertise, excellent processing equipment, advanced production technology, strict inspection systems, and comprehensive after-sales service, earning consistent customer praise. Our products have been successfully implemented in major global brands.

We pay meticulous attention to every detail and look forward to progressing together with our partners worldwide.

Global Excellence in Extruder Components

As a leading global manufacturer of twin screw extruder components, we provide gearboxes, barrels, screw elements, and core shafts renowned for their efficiency, stability, and durability. Our products serve diverse industries including plastics, rubber, food packaging, pharmaceuticals, and new energy applications like lithium battery production.

We offer customized solutions and technical support to address specific processing challenges, continuously improving our products and services to maintain our market leadership position.

We welcome long-term partnerships with customers worldwide to create mutual success.

Frequently Asked Questions

Q1: What products and services does your company primarily offer?

A: We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts, serving various industries worldwide with our quality products and professional services.

Q2: What are the features of your twin-screw extruder gearboxes?

A: Our gearboxes are designed for high efficiency, stability, and durability, using precision engineering and premium materials to ensure exceptional performance across industrial applications.

Q3: In which industries are your products widely used?

A: Our components serve plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and emerging sectors like lithium battery production in new energy applications.

Q4: How can we obtain customized solutions?

A: Contact our customer service team for personalized product designs and technical support tailored to your specific requirements.

Q5: How can we establish a partnership with your company?

A: We welcome long-term partnerships worldwide. Contact our customer service team to discuss your needs and our product offerings.

Q6: What is your company's guarantee for product quality?

A: We maintain rigorous quality control processes to ensure our products meet the highest standards, consistently exceeding customer expectations through our comprehensive quality assurance system.
