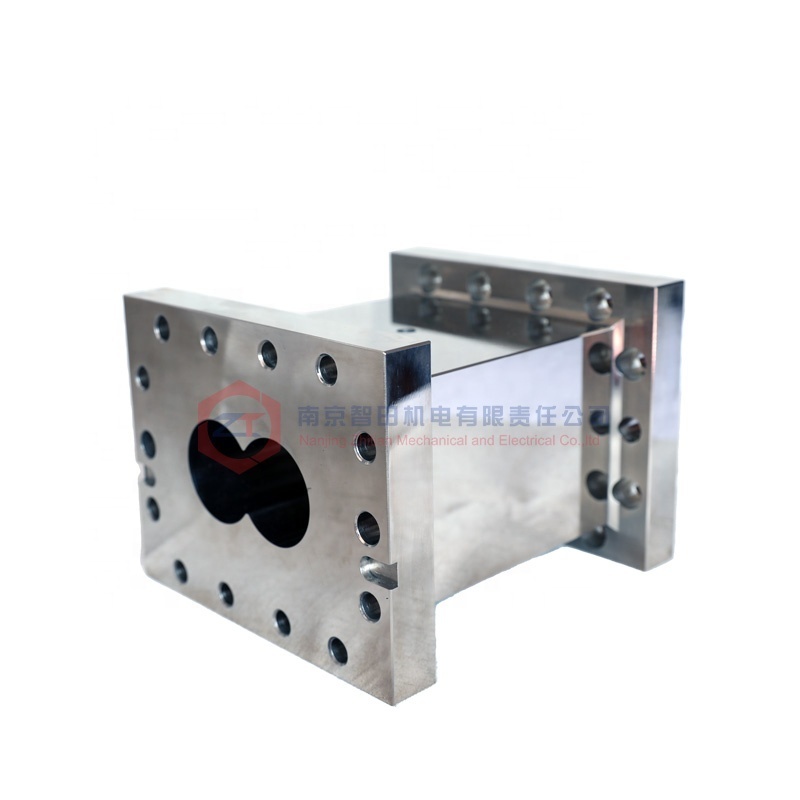

Bimetallic Twin Screw Barrel 16.5-400mm for Plastic Compounding

उत्पाद विवरण

उत्पत्ति के प्लेस: जियांगसु, चीन

ब्रांड नाम: ZHITIAN

प्रमाणन: ISO 9001

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा: 1

मूल्य: $300

सर्वोत्तम मूल्य प्राप्त करें

उत्पाद विवरण

उत्पाद वर्णन

प्रमुखता देना:
                                                                                                                                                                                                                                                                                                                                                                                                            Bimetallic twin screw barrel, Plastic compounding extruder barrel, 16.5-400mm screw barrel


सामग्री:	द्विधात्वीय	वज़न:	50 किलोग्राम
पेंच डिजाइन:	जुड़वां पेंच	व्यास सीमा:	16.5 से 400 मिमी
संरचना प्रकार:	अभिन्न / विभाजन / मॉड्यूलर	प्रतिरोध पहन:	उच्च / मध्यम / अनुकूलन योग्य
मॉडल प्रकार:	20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135	सामग्री विकल्प:	HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30
बैरल प्रकार:	ठोस बैरल, प्रत्यक्ष यौगिक बैरल, पूर्ण लाइनर बैरल, यौगिक मिश्र धातु लाइनर बैरल	ठोस बैरल सामग्री:	हेस्टेलॉय-सी मिश्र धातु, 38crmoala, 304/316/316L स्टेनलेस स्टील
प्रत्यक्ष यौगिक सामग्री:	ZT610 NI60 आधारित+CU, ZT615 NI60 आधारित, ZT625 NI60 आधारित+टंगस्टन कार्बाइड, हिप कोबाल्ट आधारित+टंगस	पूरा लाइनर सामग्री:	38CRMOALA लाइनर, 440C स्टेनलेस स्टील लाइनर, CR12MOV लाइनर, SKD11/SKD61 लाइनर, DC53 लाइनर, W6MO5CR4V2
यौगिक मिश्र धातु लाइनर:	S45C+ZT610 NI60 आधारित लाइनर+Cu, S45C+ZT615 NI60 आधारित लाइनर, S45C+ZT625 NI60 आधारित लाइनर+टंगस्टन	शुद्धता:	उच्च सटीकता
अनुकूलन:	हाँ, चित्र या नमूना के अनुसार

सामग्री:	द्विधात्वीय
वज़न:	50 किलोग्राम
पेंच डिजाइन:	जुड़वां पेंच
व्यास सीमा:	16.5 से 400 मिमी
संरचना प्रकार:	अभिन्न / विभाजन / मॉड्यूलर
प्रतिरोध पहन:	उच्च / मध्यम / अनुकूलन योग्य
मॉडल प्रकार:	20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
सामग्री विकल्प:	HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30
बैरल प्रकार:	ठोस बैरल, प्रत्यक्ष यौगिक बैरल, पूर्ण लाइनर बैरल, यौगिक मिश्र धातु लाइनर बैरल
ठोस बैरल सामग्री:	हेस्टेलॉय-सी मिश्र धातु, 38crmoala, 304/316/316L स्टेनलेस स्टील
प्रत्यक्ष यौगिक सामग्री:	ZT610 NI60 आधारित+CU, ZT615 NI60 आधारित, ZT625 NI60 आधारित+टंगस्टन कार्बाइड, हिप कोबाल्ट आधारित+टंगस
पूरा लाइनर सामग्री:	38CRMOALA लाइनर, 440C स्टेनलेस स्टील लाइनर, CR12MOV लाइनर, SKD11/SKD61 लाइनर, DC53 लाइनर, W6MO5CR4V2
यौगिक मिश्र धातु लाइनर:	S45C+ZT610 NI60 आधारित लाइनर+Cu, S45C+ZT615 NI60 आधारित लाइनर, S45C+ZT625 NI60 आधारित लाइनर+टंगस्टन
शुद्धता:	उच्च सटीकता
अनुकूलन:	हाँ, चित्र या नमूना के अनुसार

Bimetallic Twin Screw Barrel 16.5-400mm for Plastic Compounding

High Strength Twin Screw Barrel for Plastic Compounding Line Essential Rubber Machinery Part

Our high-performance twin screw extruder barrels are engineered for durability and precision in demanding industrial applications.

Color	Metal
Standard	GB ISO 9001
Model	Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Brand	zhitian
Quality	High wear-resistance and corrosion-resistance
Used	For twin screw extruder

Efficient and stable, widely used in industries: Our twin-screw extruder barrels are extensively utilized in plastics, rubber, chemicals, food, and new energy industries. Countless extruders worldwide rely on our high-performance components.

Advanced "Building Block" Design

Our split twin-screw extruder features an innovative modular design. The screw consists of various blocks installed on the mandrel and barrel lining, forming an adjustable sleeve configuration. This allows flexible component combinations to meet specific material processing requirements for optimal transportation, refinement, shearing, and discharge.

Reduced Maintenance Costs

The modular design enables partial replacement of worn components, eliminating the need for complete screw or barrel replacement. This significantly lowers maintenance expenses while minimizing downtime.

Continuous Material Innovation

With our proprietary powder metallurgy equipment, we've developed advanced materials including ZT615 nickel-based alloy and ZT625 nickel-based alloy tungsten carbide, specifically engineered for extreme wear and corrosion resistance.

Barrel Types and Materials

Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel

Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide

Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide

Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide

Product Showcase

Why Choose Zhitian's Extruder Barrel?

With extensive experience in twin-screw extruder technology, we've developed innovative barrel designs that significantly enhance output and service life. As a trusted OEM supplier for leading global extruder manufacturers, Zhitian stands among China's premier extruder barrel producers.

Our Advantages

Extended service life through premium materials
Custom material selection for wear and corrosion resistance
Expert technical support for precise measurements and design
Comprehensive quality management with traceability
Versatile application across multiple material processing needs

Company Profile

Nanjing Zhitian specializes in manufacturing replacement parts for twin screw extruders, with over 20 years of industry experience. Our product range includes gearboxes, barrels, and screw elements, along with comprehensive refurbishment services.

With strong technical expertise, advanced equipment, rigorous quality control, and exceptional after-sales support, our products have gained recognition from global industry leaders.

Global Excellence in Extruder Components

As a leading global manufacturer of twin screw extruder components, we provide gearboxes, barrels, screw elements, and core shafts renowned for their efficiency, stability, and durability. Our products serve diverse industries including plastics, rubber, food packaging, pharmaceuticals, and new energy applications.

We offer customized solutions and technical support to address specific processing challenges, continuously improving our products and services to maintain industry leadership.

Frequently Asked Questions

Q1: What products and services does your company primarily offer?

A: We specialize in manufacturing critical components for twin-screw extruders, including gearboxes, barrels, screw elements, and core shafts, renowned for their exceptional quality and performance.

Q2: What are the features of your twin-screw extruder gearboxes?

A: Our gearboxes are engineered for high efficiency, stability, and durability, featuring precision design and premium materials for optimal performance in demanding industrial applications.

Q3: In which industries are your products widely used?

A: Our components serve diverse sectors including plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and emerging fields like lithium battery production for new energy applications.

Q4: How can we obtain customized solutions?

A: Our technical team provides personalized product designs and support. Contact our customer service for detailed customization options tailored to your specific requirements.

Q5: How can we establish a partnership with your company?

A: We welcome long-term collaborations. Contact our customer service team to discuss partnership opportunities and product requirements.

Q6: What is your company's guarantee for product quality?

A: We implement rigorous quality control processes to ensure all products meet the highest standards, with comprehensive quality assurance systems that exceed customer expectations.
